Data Highway Plus (DH+) / Remote I/O (RI/O) Adapter PC/104 Interface Card
The DH+ / RI/O Adapter Card is a PC/104 based module which allows PC/104 computers or OEM
based applications access to AB's DH+ and RI/O networks. The Interface Card allows existing 1770-
KF2, and PLC CH0 Serial DF1 drivers to run at the PC/104's bus speed. This will allow MMI, HMI,
SCADA equipment, and other computer applications access to any DH+ node including PLC's and
SLC's.
All settings are accomplished using an easy to use Windows based Configuration Program over the bus
or by using an external RS-232 connection to another computer.
Data Highway Plus (DH+)
Speeds: 57.6 K ,115.2, and 230.4 Kbaud
Configurable DH+ address (0 to 77o)
Remote I/O (RI/O)
Speeds: 57.6 K, 115.2 K, and 230.4 Kbaud
Occupy 1 to 7 virtual adapter Racks
128 bits of throughput data per rack
Up to 16 Block Transfer Reads and Writes per rack
Specifications
Stackable : bus connectors to PC/104 Bus Pushbutton : to enable Hardware configuration (COM and IRQ) Parameters : Hardware and Online (DH+ / RI/O) are stored in Non-Volitile EEPROM FLASH : firmware allows ease of upgrading DF1 : Both Full (Point to Point) and Half (Multidrop) Duplex Modes DF1 : Either BCC or CRC error checking Diagnostic : DF1 counters for driver statistics
ERROR Led : Red Led indicates driver and network errors NETWORK Led : Green Led indicates either DH+ or RI/O activity BUS Led : Green Led indicates access to the cards 16550 UART Emulator (COM PORT) by DF1 driver
Dimensions : 3.550" X 3.775" (90.17 X 95.89 mm) and 0.2 lbs (0.086 Kg) Operating Environment : 32 to 122 °F (0 to 50 °C) Storage : -40 to 185°F (-40 to 85°C) Humidity : 5% to 95% non-condensing Power : PC/104 Bus 5V - 1.5 watts
Wiring Diagrams
1. Online Cable DL-PC/104 DH+/RIO
Note : Clear & Blue might have to be swapped depending on existing DH+ wiring RIO wiring usually has the Clear and Blue swapped

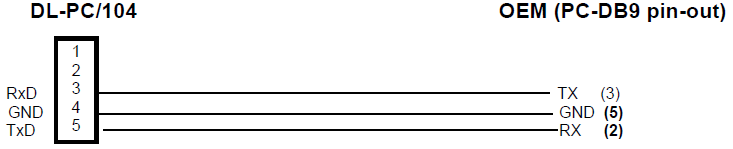

2. Offline Programming Port RS232 – 5 Pin Plug
Note : 5 Pin Connectors are numbered from Left to Right
