Application Note on :

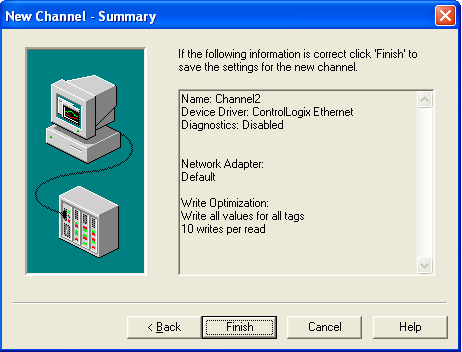

EQ7000EDH+ with IGS using Ethernet IP driver.

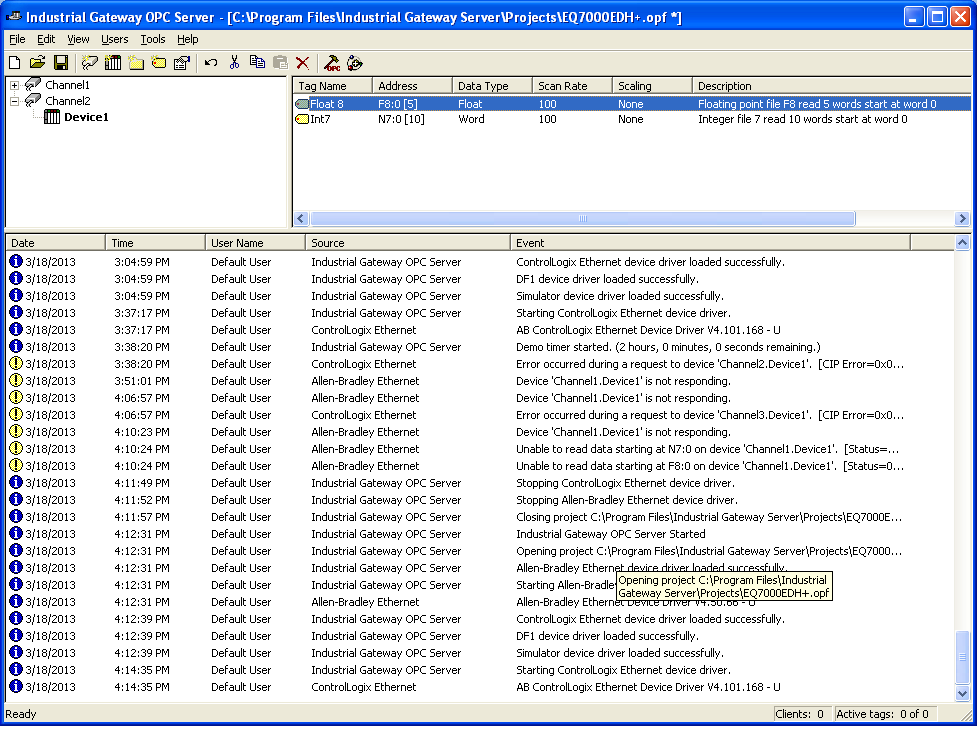

In this example we are reading 10 words from integer file 7 starting at word 0.

Also reading 5 words from floating file F8 starting at word 0 from the PLC5 on a DH+ node address ( 07 Octal = 07 decimal) and the EQ7000 IP address is 192.168.2.236
