DL4500-EDH+ STD with IGS demo reading data from PLC5 using Ethernet Encapsulated DF1 driver.
PDF Download

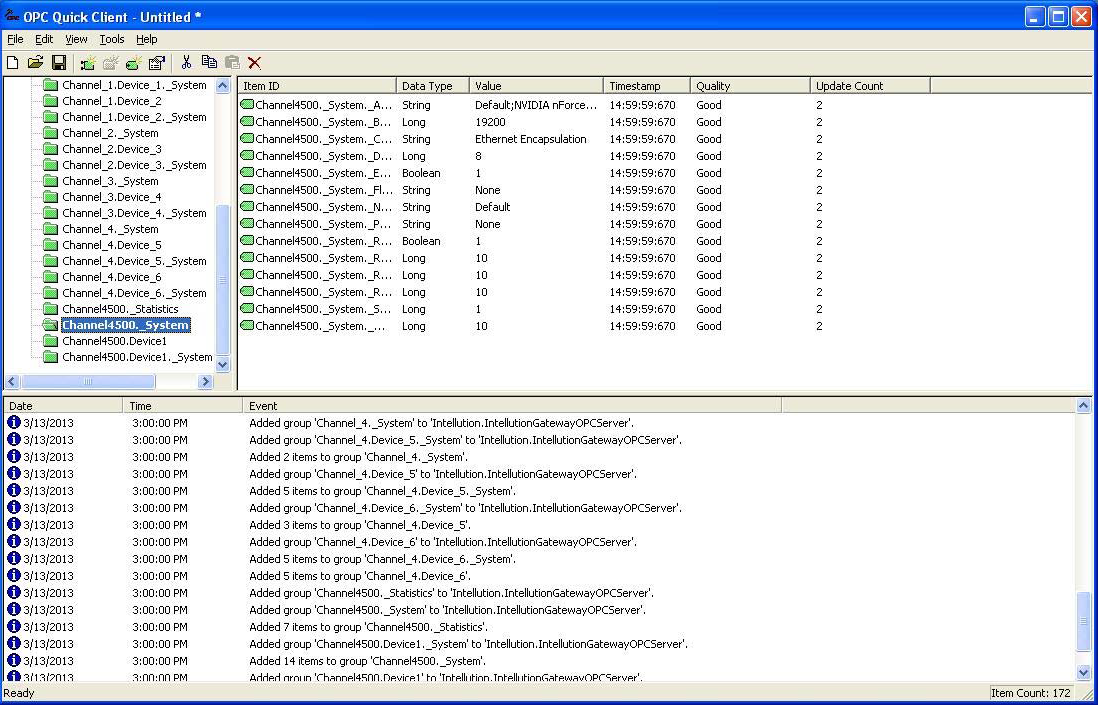

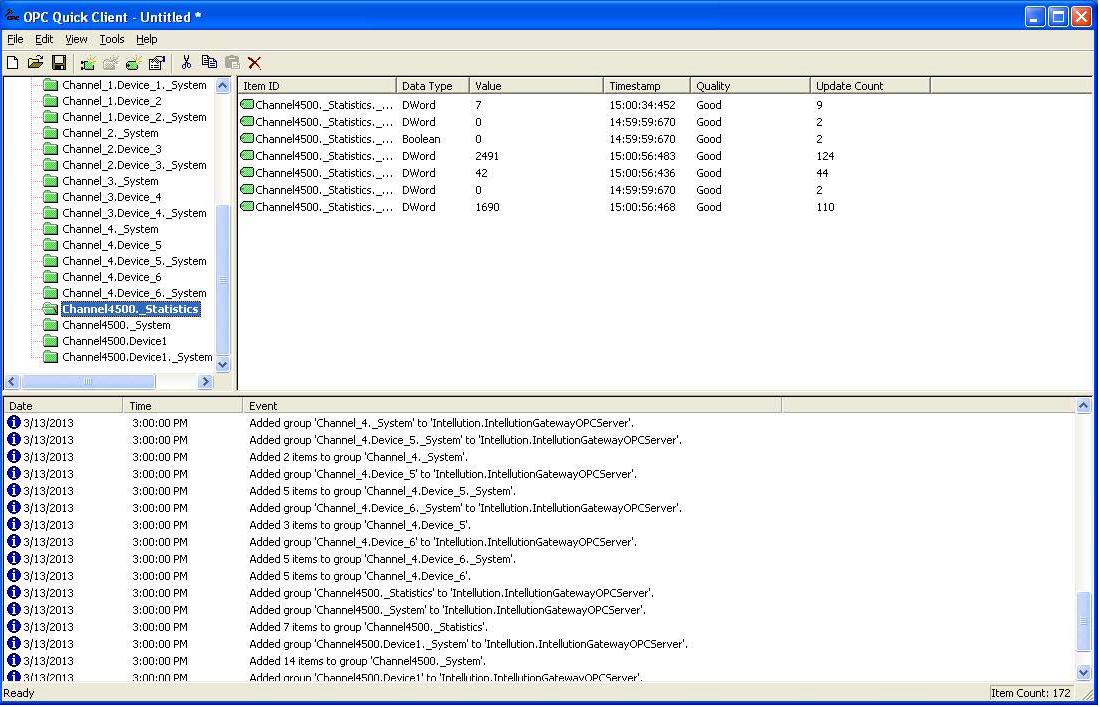

In this example we are reading 5 words from integer file 7 starting at word0
Also reading 5 words from floating file F8 starting at word 0.

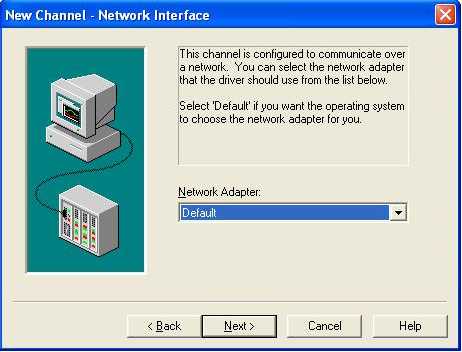

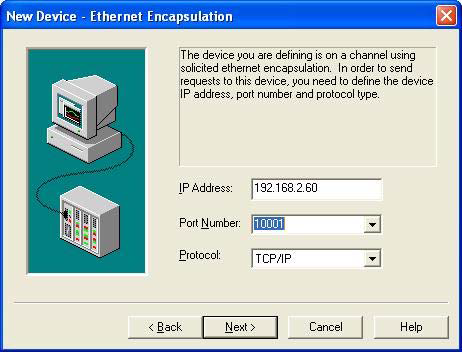

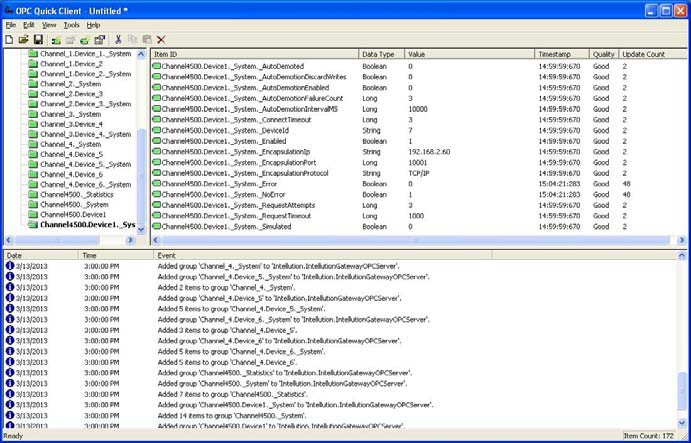

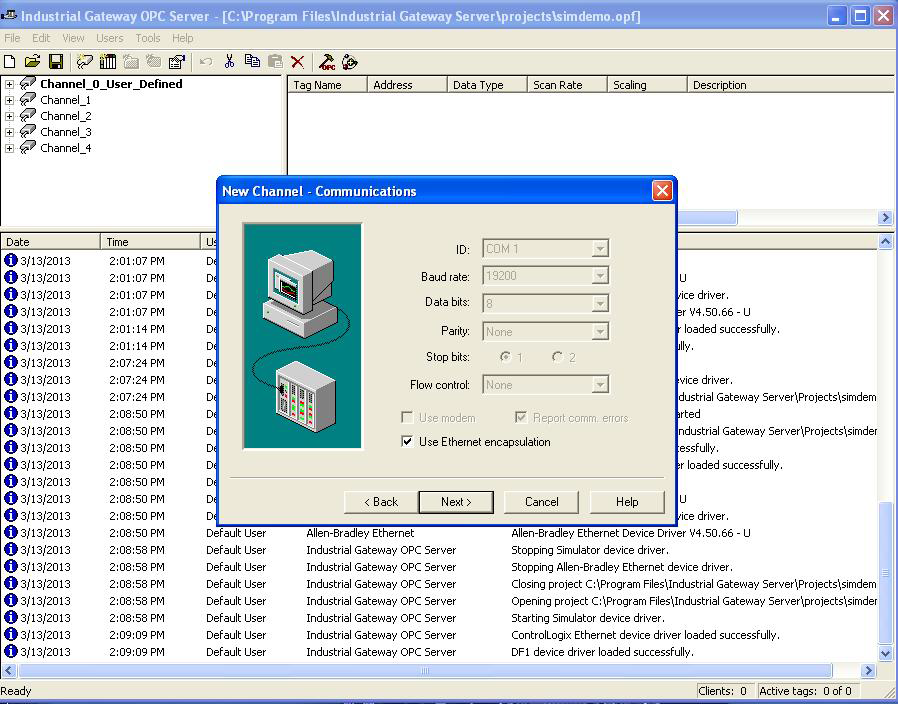

IP address of the DL4500 is 192.168.2.60

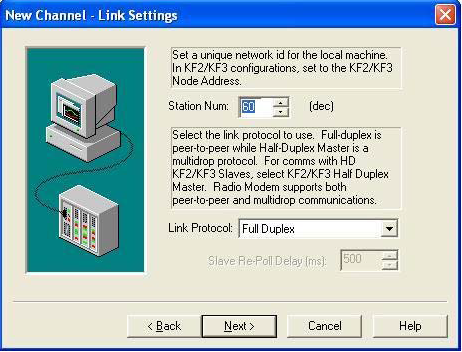

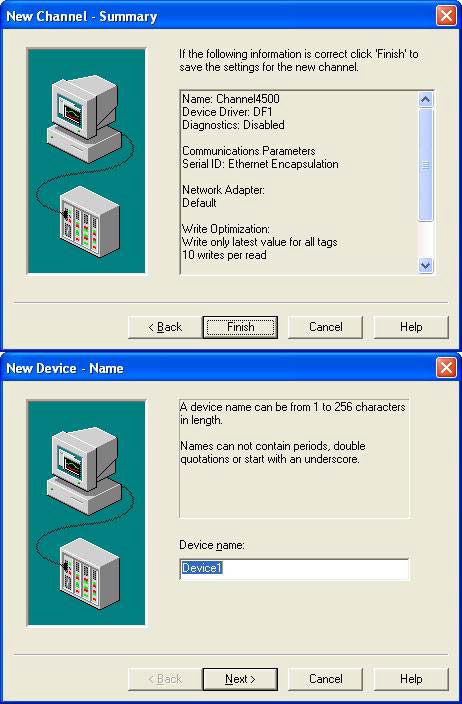

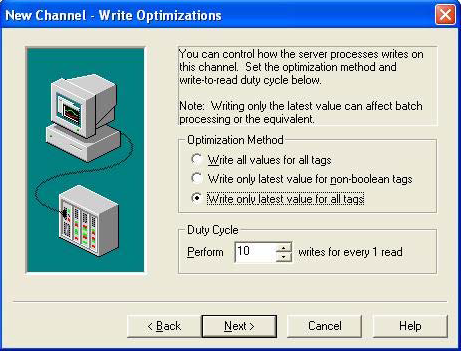

Node address of the DL4500 on DH+ is 60 decimal ( last octet of the IP address).

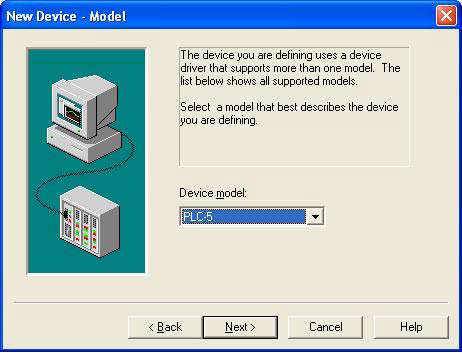

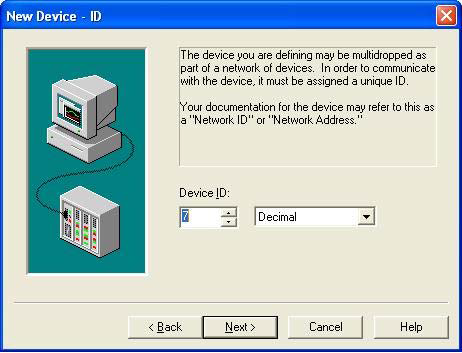

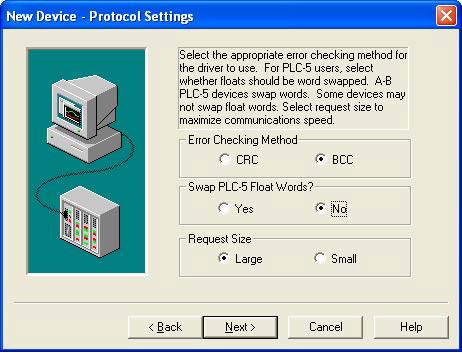

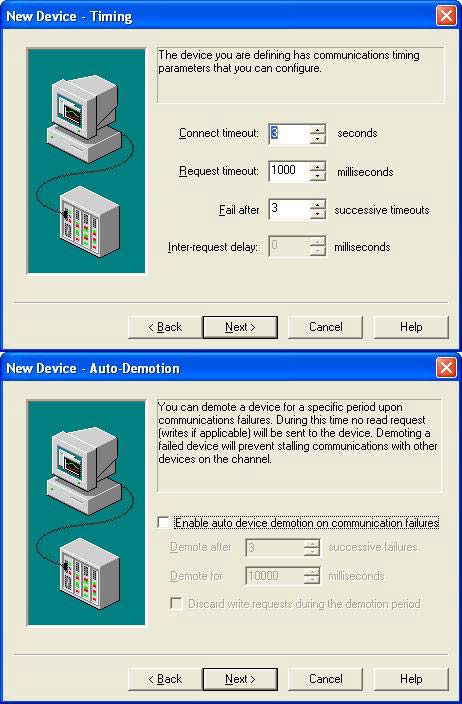

Node address of the PLC5 on DH+ is 7 in this application need to be in decimal.
Node address of the DL4500 on DH+ network is its last Octet in decimal, here it is 60.
Here Node address of the PLC5 is 7 please note that this should be in decimal.
For DL4500 STD Telnet settings please see in the link below or just search on YouTube DL4500.
http://www.youtube.com/watch?v=CiM_fG98drs
